Features:

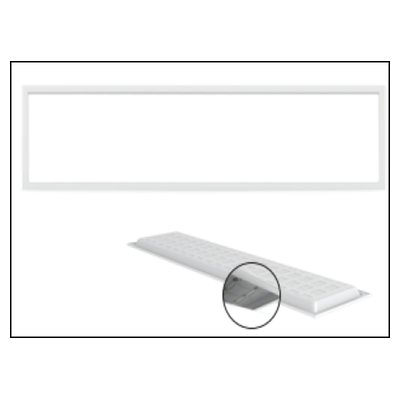

Backlit series adopts high lumen SMD LED as a light source. Backlit square panel light can be a
replacement for traditional tube light. Weight: 195g for 1203. Better and evenly surfaced finish
for improved visual effect.
| Product Specification | |
|---|---|
| LED Chip | SMD |
| LED Power | 48W |
| Input | 220–240 VAC |
| Lumen | 5760 lm |
| CCT | 4000K / 6500K |
| Driver | Lifud |
| Technical Data | |
|---|---|
| IP Rating | IP20 |
| Housing | Powder-coated extruded aluminum |
| Back Plate | Powder-coated iron |
| Diffuser | PC |
| Finishing | White |
| Mounting | Suspended / Recessed / Surface |
| Power Factor | PF > 0.9 |
| Warranty | 3 years |

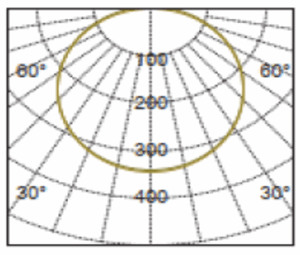

| Photometric Data | |
|---|---|
| CRI | 80 |
| Luminous Efficacy | 120 lm/W |
| Operating Temp. | −20°C ~ +40°C |
