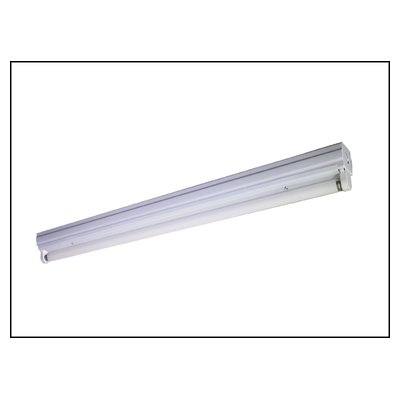

Batten Type Lighting

Batten Type Lighting

Description

Key Features

  • Made of sheet steel, aluminum, or stainless steel.
  • Finishing electro-statically with white epoxy-polyester powder painted.
  • Two configurations are available, batten type & reflect type.
  • Accessories (lamp holder, terminal) made from polycarbonate.
  • LED tube, or fluorescent tubes (with high efficiency).
  • Electronic or magnetic ballast.
  • Emergency kit (optional).
  • Protection degree (IP_20).
  • Application: shopping mall, supermarket, factory workshop, classroom, and more.

Technical Information

Dimension (mm) MODEL LAMP (W) LED MODEL LED LAMP (W)
612 x 62 x 14 NEI 118 B 1 x 18 NEI 108 B LD 1 x 8
612 x 87 x 14 NEI 218 B 2 x 18 NEI 208 B LD 2 x 8
612 x 260 x 14 NEI 318 B 3 x 18 NEI 308 B LD 3 x 8
612 x 320 x 14 NEI 418 B 4 x 18 NEI 408 B LD 4 x 8
1224 x 62 x 14 NEI 136 B 1 x 36 NEI 118 B LD 1 x 18
1224 x 87 x 14 NEI 236 B 2 x 36 NEI 218 B LD 2 x 18
1224 x 260 x 14 NEI 336 B 3 x 36 NEI 318 B LD 3 x 18
1224 x 320 x 14 NEI 436 B 4 x 36 NEI 418 B LD 4 x 18
1521 x 62 x 14 NEI 158 B 1 x 58 NEI 136 B LD 1 x 36
1521 x 87 x 14 NEI 236 B 2 x 58 NEI 236 B LD 2 x 36
1521 x 260 x 14 NEI 358 B 3 x 58 NEI 336 B LD 3 x 36
1521 x 320 x 14 NEI 458 B 4 x 58 NEI 436 B LD 4 x 36
