| LED’s | 24 |
|---|---|
| Current | 300 – 1050 mA |
| Power | 30W / 60W |
| PF | > 0.95 |
| V/HZ | 90 – 305 V / 50 – 60HZ |
| Driver | INVINTRONICS / PHILIPS / OSRAM |
| Control Option | DALI / 0 – 10V / Astro DIM / Step DIM / Smart Control Ready |
| Efficacy | 160 lm/w |
|---|---|
| Luminous Flux | 5000lm / 10322.9lm |
| CRI | > 70 Ra |
| CCT | > 4000 K |
| Beam Angle | TYPE I K51 / TYPE II K13 / TYPE II K33 / TYPE III K19 / TYPE III K74 / TYPE III K50 / TYPE IV K15 / TYPE IV K6863 / TYPE V K46 |
| LED Module | Seoul 5050 |
| Lens | Polycarbonate |
| Optical Cover | Tempered Glass |

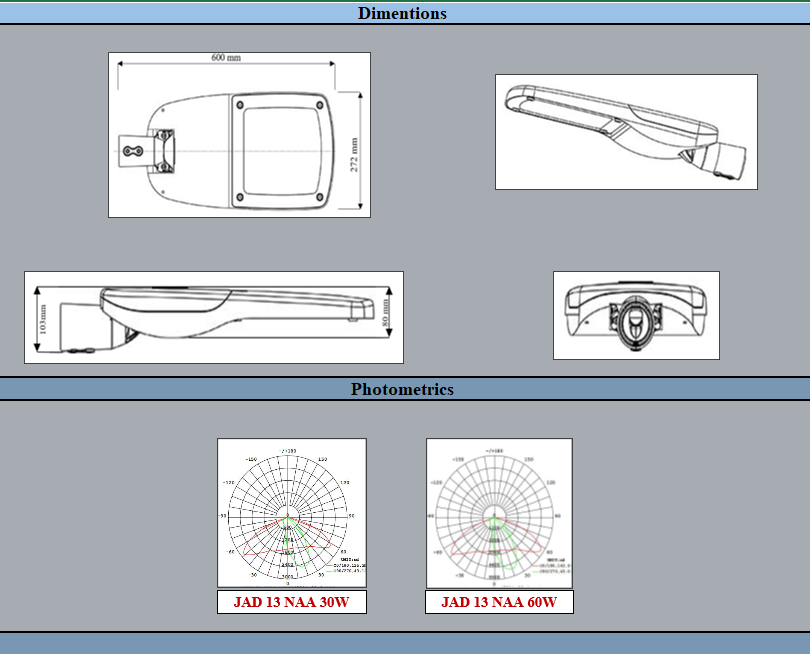

| Dimensions | 539 x 248 x 132 mm |
|---|---|
| Mounting | Side fitting / Top fitting |
| Installation Pipe | Ø48mm / Ø60mm / Ø76mm |
| Pole Height | 6m – 8m |
|---|---|
| Max wind Load Area | 0.12 |
| Weight | 3.5 kg |
| Container | Size (mm) | Per Carton (pcs) | Per Container (pcs) | Net Weight (Kg) | Gross Weight (Kg) |
|---|---|---|---|---|---|
| 20FT (5.85*3.23*2.15) | 560x260x150 | 1 | 1400 | 3.5 / 4900 | 4.2 / 5880 |
| 40GP (11.8*2.13*2.18) | 560x260x150 | 1 | 2600 | 3.5 / 9100 | 4.2 / 10920 |
| 40HQ (11.8*2.13*2.72) | 560x260x150 | 1 | 3250 | 3.5 / 11375 | 4.2 / 13650 |
