| LED’s | 48 | 54 | 72 |
|---|---|---|---|
| Current | 300 – 1050 mA | ||
| Power | 50 – 170 W | 65 – 170 W | |
| PF | > 0.95 | ||
| V/HZ | 90 – 305 V / 50 – 60HZ | ||
| Driver | INVINTRONICS / PHILIPS / OSRAM | ||
| Control Option | DALI / 0 – 10V / Astro DIM / Step DIM / Smart Control Ready | ||
| Efficacy | 160 lm/w | ||
|---|---|---|---|
| Luminous Flux | 8000lm – 27,200lm | 10,400lm – 27,200lm | |
| CRI | > 70 Ra | ||
| CCT | > 4000 K | ||
| Beam Angle | TYPE I K51 / TYPE II K13 / TYPE II K33 / TYPE III K19 / TYPE III K74 / TYPE III K50 / TYPE IV K15 / TYPE IV K6863 / TYPE V K46 | ||
| LED Module | Seoul 5050 | ||
| Lens | Polycarbonate | ||
| Optical Cover | Tempered Glass | ||

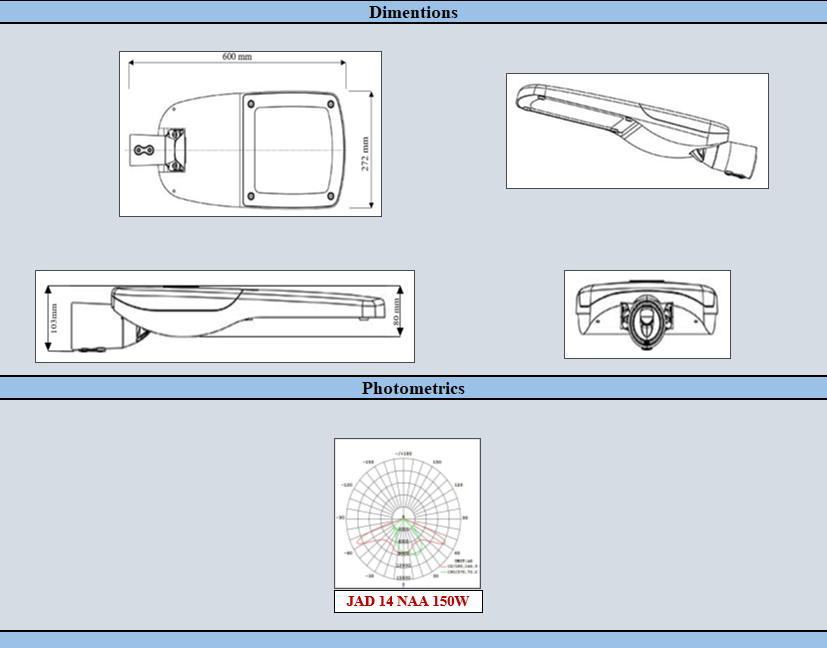

| Dimensions | 647 x 265 x 148 mm | ||
|---|---|---|---|
| Mounting | Side fitting / Top fitting | ||
| Installation Pipe | Ø48mm / Ø60mm / Ø76mm | ||
| Pole Height | 6m – 8m | ||
|---|---|---|---|
| Max wind Load Area | 0.17 | ||
| Weight | 5 kg | ||
| Container | Size (mm) | Per Carton (pcs) | Per Container (pcs) | Net Weight (Kg) | Gross Weight (Kg) |
|---|---|---|---|---|---|
| 20FT (5.85*3.23*2.15) | 660*285*180 | 1 | 580 | 5 / 4250 | 5.9 / 5015 |
| 40GP (11.8*2.13*2.18) | 660*285*180 | 1 | 1600 | 5 / 8000 | 5.9 / 9440 |
| 40HQ (11.8*2.13*2.72) | 660*285*180 | 1 | 2000 | 5 / 10000 | 5.9 / 11800 |
