| Item | 36 LEDs | 54 LEDs | 72 LEDs |
|---|---|---|---|
| LED’s | 36 | 54 | 72 |
| Current | 300 – 1050 mA | ||
| Power | 34 W – 123 W | 49.6 W – 171.8 W | 65.1 W – 169.6 W |
| PF | > 0.95 | ||
| V / Hz | 90 – 305 V / 50 – 60 Hz | ||
| Driver | INVINTRONICS / PHILIPS / OSRAM | ||
| Control Option | DALI / 0–10 V / Astro DIM / Step DIM / Smart Control Ready | ||
| Item | 36 LEDs | 54 LEDs | 72 LEDs |
|---|---|---|---|
| Efficacy | 160 lm/W | ||
| Luminous Flux | 5,440 lm – 19,680 lm | 15,136 lm – 27,488 lm | 10,416 lm – 27,136 lm |
| CRI | > 70 Ra | ||
| CCT | > 4000 K | ||
| Beam Angle | TYPE II K13 | ||
| LED Module | Seoul 5050 | ||
| Lens | Polycarbonate | ||
| Optical Cover | Tempered Glass | ||

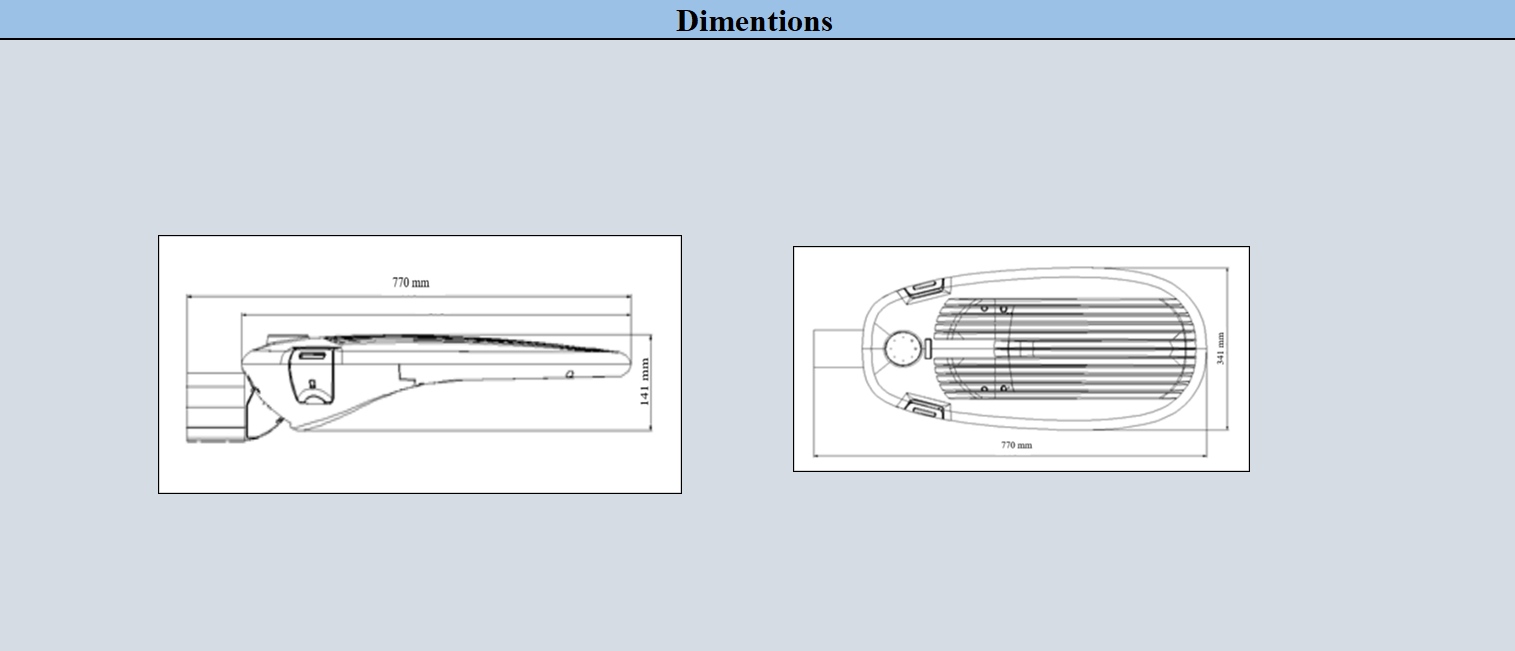

| Dimensions | 770 × 341.5 × 143 mm |
|---|---|
| Mounting | Side fitting / Top fitting |
| Installation Pipe | Ø48 mm / Ø60 mm / Ø76 mm |
| Pole Height | 6 m – 12 m |
|---|---|
| Max Wind Load Area | 0.23 m² |
| Weight | 10 kg |
| Container | Size (mm) | Per Carton (pcs) | Per Container (pcs) | Net Weight (kg) per 1 / per container | Gross Weight (kg) per 1 / per container |
|---|---|---|---|---|---|
| 20FT (5.85×3.23×2.15) | 785×355×200 | 1 | 850 | 10 / 8500 | 11 / 9350 |
| 40GP (11.8×2.13×2.18) | 785×355×200 | 1 | 1600 | 10 / 16000 | 11 / 17600 |
| 40HQ (11.8×2.13×2.72) | 785×355×200 | 1 | 2000 | 10 / 20000 | 11 / 22000 |
